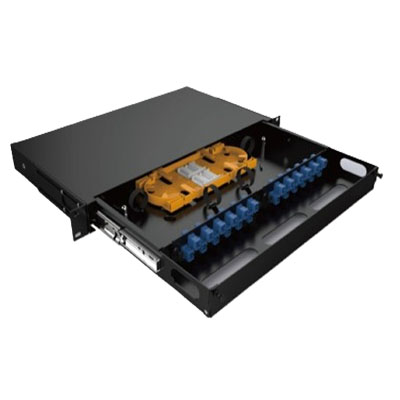

1U Rack Mount SR Sliding (ODF)/Enclosure
SKU:CS-RM1FSR2D-XX
1U Rack Mount SR Modular (ODF)/Enclosure

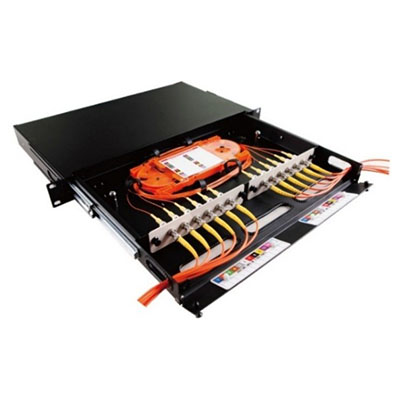

CONTECH 1U Rack Mount Sliding Try Fiber ODF/Enclosure panels/cassettes typically supports up to 96 fibers.
Applications:
- Data Centers High-Density Fiber Management: Ideal for managing backbone fiber connections between servers, switches, and storage systems.
- Fiber-to-the-Home (FTTH): Splices and distributes fibers to subscriber lines in multi-dwelling units (MDUs) or street cabinets.
- Backbone & Metro Networks: Connects long-haul fibers to local distribution points.
- LAN/WAN Connectivity: Manages fiber links between buildings or floors in corporate/government campuses.
Key Features:
- High-density design: The 1U ODF patch panel can accommodate up to 48 fibers in a single 1U rack space.
- Snap-in adapter plates and removable cover provides for easy access and installation.
- Sliding Design allows easy front access for maintenance without disconnecting cables..
- Integrated patchcord guiding system.
- Splitter 2 front panels option available.
- Hinged front panel is easy to be turned over & be fixed by snap-in locker.
- Flexible for re-arrangements.
- Supports SC simplex, duplex or LC duplex connectivity
Standard:
- EIA 19" rack
- RoHS
Physical Specifications:
| Form Factor | 1U Rack Mount |
| Max Panels/Cassettes | 2 × Panels/Cassettes |
| Max Fiber Capacity | 96 fibers |
| Material | Cold-rolled steel |
| Finish | Powder-coated |
| Mounting Standard | 19-inch rack |
| Adapter Types | SC/LC (Simplex, Duplex)/FC/ST (Simplex) |
| Door Type | Transparent Glass with Frame, Removable |
| Cable Entry Direction | Side and Rear Entry |
| Dimension | 44Hx480Wx310D mm |
| Color | Black |
Order Information:
| 1U Enclosure Part No. | SC Simplex Modular Part No. | SC Duplex Modular Part No. | LC Simplex Modular Part No | LC Duplex Modular Part No | FC Simplex Modular Part No | Front Blank Panel |
| CS-RM1FSR2D-XX | CS-SR2D-T24C | CS-SR2D-SSC-12 | CS-SR2D-DSC-12 | CS-SR2D-DLC-12 | CS-SR2D-SFC-12 | CS-SR2D-BLK |
