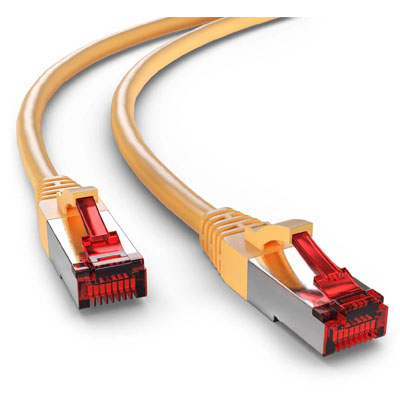

Category 6 S-FTP Patch Cord
SKU: CS-C6XSFPC-XX-XX
4 Pair 26awg Cat 6 S-FTP Patch Cable.
CONTECH Cat 6 S/FTP patch cords are manufactured using high-quality shielded four pair Category 6 stranded cable, and feature cable strain relief boots with a plug latch protection cap. This patch cord when used with high performance CONTECH Category 6 connectivity (Solid shielded cable, patch panels and work area outlets), provide superior performance capabilities of high bandwidth (Gigabit 1000Base-T and 1000Base-Tx) applications support. CONTECH Category 6 Patch cord is tested for transmission frequencies of up to 250 MHz.
Applications:
- Data Centres & Server Rooms
- Office & Enterprise Networks
- Telecommunications & ISP Installations
- Audio/Video, CCTV Systems & Smart Homes.
Key Features:
- Cat 6 supports frequencies up to 250 MHz..
- Cat6 Supports 1 Gbps up to 100 m; 10 Gbps over shorter distances (≤55 m).
- Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt).
- SFTP Cable Minimizes EMI and RFI Interference.
- This molded patch cable offers high-quality connectors comprised of 50-micron gold, to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion..
- S/FTP 26AWG Stranded flexible patch cable and terminating with RJ45 Modular Plugs.
- Performance Tested with Fluke and Wired T568B.
- The optional outer LSZH jacket is flame-retardant and produces minimal smoke and zero halogen gases during combustion.
- Available in various lengths and colours.
Standard:
- ISO/IEC 11801 Class E.
- ANSI/TIA-568.2-D
- IEC 60332-1, (LSZH Version).
- RoHS & CE
Physical Specifications:
| Category | 6 |
| No. of Pair & Conductor | 4 PR /stranded Bare Copper / 26 AWG |
| Cable Type | S-FTP / AL—MYLA Foil around each pair/Tinned copper Overall braiding |
| Outer Jacket Material & Size | LSZH / Outer Dia. :6.70 ± 0.35mm |
| Connectors | RJ-45 8P8C PLUG./50μ'' Gold-plated Contacts |
| Min. Bend Radius Installation | 4x Cable-Ø |
| Operating Temperature | - 10°C to +65°C |
| Storage Temperature | - 20°C to +75°C |
Electrical Characteristics:
| Mutual Capacitance | ≤ 1600 pF/km |
| Insulation Resistance | ≥ 500 MΩ·km |
| Max. loop resistance | ≤ 95.0 Ω/Km |
| Current Rating | 1.5 A |
| Conductor Resistance | ≤ 87.6 Ohms/km |
| Bandwidth | 250 MHz |
Order Information:
| Part No. | Type of Class | Type of Cable | Optional Lengths (Meter) | Outer Jacket Colour Options | Outer Jacket | Packaging |
| CS-C6XSFPC-XX-XX-XXX | CAT-6 | S-FTP | 01,02,03,04,05
10,15,20,25 & 30 |
Orange-OR/Blue-BU/Green-GN
Yellow-YE/Red-RD/Black-BK |
PVC/LSZH | 1 Piece
Packing Bag |
