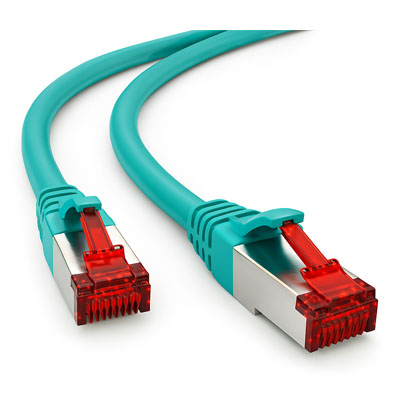

Category 6A U-FTP Patch Cord
SKU: CS-C6AUFPC-XX-XX
4 Pair 24awg Cat 6A U-FTP Patch Cable.
CONTECH Category 6A U/FTP patch cord delivers optimal transmission & networking performance with reduced Insertion loss and Alien crosstalk. This Patch cord is tested for transmission frequencies up to 500 MHz and compatible with the 10 Gigabits applications, including the following protocols: Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3) 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-Any LAN100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM Voice.
Applications:
- Data Centres & Server Rooms
- Office & Enterprise Networks
- Telecommunications & ISP Installations
- Audio/Video, CCTV Systems & Smart Homes.
Key Features:
- Cat 6A supports frequencies up to 500 MHz..
- Cat6A Supports 1 Gbps up to 100 m; 10 Gbps over shorter distances (≤55 m).
- Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt).
- U/FTP and S/FTP Cable Minimizes EMI and RFI Interference.
- This molded patch cable offers high quality connectors comprised of 50-micron gold, to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion..
- U/FTP 26AWG Stranded flexible patch cable and terminating with RJ45 Modular Plugs.
- Performance Tested with Fluke and Wired T568B.
- The optional outer LSZH jacket is flame-retardant and produces minimal smoke and zero halogen gases during combustion.
- Available in various lengths and Color.
Standard:
- ISO/IEC 11801 Class EA.
- ANSI/TIA-568.2-D
- IEC 60332-1, (LSZH Version).
- RoHS & CE
Physical Specifications:
| Category | 6A |
| No. of Pair & Conductor | 4 PR /stranded Bare Copper / 26 AWG |
| Cable Type | U-FTP /AL—MYLA Foil around each pair |
| Outer Jacket Material & Size | PVC/LSZH / Outer Dia. :6.00 ± 0.35mm |
| Connectors | RJ-45 8P8C PLUG./50μ'' Gold-plated Contacts |
| Min. Bend Radius Installation | 4x Cable-Ø |
| Operating Temperature | - 10°C to +65°C |
| Storage Temperature | - 20°C to +75°C |
Electrical Characteristics:
| Mutual Capacitance | ≤ 1600 pF/km |
| Insulation Resistance | ≥ 500 MΩ·km |
| Max. loop resistance | ≤ 95.0 Ω/Km |
| Current Rating | 1.5 A |
| Conductor Resistance | ≤ 87.6 Ohms/km |
| Bandwidth | 500 MHz |
Order Information:
| Part No. | Type of Class | Type of Cable | Optional Lengths (Meter) | Outer Jacket Colour Options | Outer Jacket | Packaging |
| CS-C6AUFPC-XX-XX-XXX | CAT-6A | U-FTP | 01,02,03,04,05
10,15,20,25 & 30 |
Orange-OR/Blue-BU/Green-GN
Yellow-YE/Red-RD/Black-BK |
PVC/LSZH | 1 Piece
Packing Bag |
