Category 7 S-FTP Cable
SKU: CS-C7XSF23

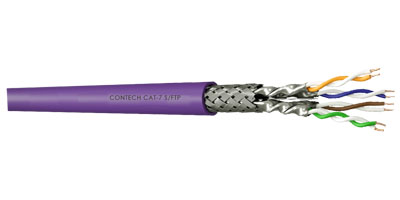

4 Pair 23awg Cat 7 S-FTP Cable.
CONTECH's Category 7 S/FTP cables exceed Category 7/ Class F specification maximizing the user’s return on investment, by extending the life of the system. It is tested to 600 MHz frequency range and designed to support 10 Gigabyte applications. S/FTP construction with individual foiled pair and an overall braid offering superior performance in terms of ACR.It supports all Ethernet applications up to 1000 Base-T and CATV applications upto 862 Mhz.
Applications:
- High-Speed Data Centers: 10G backbone cabling (future-proof for 25G/40G short-reach).
- Broadcast & Professional AV .
- Industrial Automation, Smart Factories & High-EMI Environments.
- High-Speed PoE++ (802.3bt) Applications
- Future-Proof Installations
Key Features:
- Cat 7 supports frequencies up to 750 MHz .
- Future-proof for emerging technologies like 10 Gbps over 100M and 25 Gbps over shorter distances.
- Each pair is individually shielded, and an overall shield reduces crosstalk and EMI (electromagnetic interference).
- Suitable for Power over Ethernet applications (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE ,802.3at and 802.3bt Type 4 (PoE++)up to 100W.
- The optional outer LSZH/LSFRZH jacket is flame-retardant and produces minimal smoke and zero halogen gases during combustion.
Standard:
- ISO/IEC 11801 Class F.
- EN 50173-1 & EN 50288-9-1.
- ANSI/TIA-568.2-D
- IEC 60332-1,2 (for LSZH),
- IEC 60332-3-24/25, (for LSFRZH),
- RoHS & CE
Physical Specifications:
| Category | 7 |
| No. of Pair & Conductor | 4 PR /Solid bare copper / 23 AWG |
| Conductor Insulation & Size | HDPE / Outer Dia.1.45 ± 0.1 mm |
| Cable Type | S-FTP /AL—MYLA Foil around each pair/Tinned copper Overall braiding. |
| Outer Jacket Material & Size | LSFRZH / Outer Dia. :7.80± 0.35mm |
| Min. Bend Radius Installation | 8x Cable-Ø |
| Operating Temperature | - 10°C to +65°C |
| Storage Temperature | - 20°C to +75°C |
Electrical Characteristics:
| Conductor resistance unbalance | ≤ 2% |
| Delay skew 4.0-100Mhz | ≤ 25 ns/100m |
| Max. DC resistance | ≤ 9.0 Ω/100m |
| Insulation Resistance | ≥5000 MΩ*km |
| Propagation Velocity at >10 MHz (NVP*c) | 76 % |
| Bandwidth | 600 MHz |
Transfer Characteristics:
| Freq.
MHz |
RL | ATT | NEXT | ACRF | PS NEXT | PS ACRF |
| ≥dB | ≥dB | ≥dB | ≥dB | ≥dB | ≥dB | |
| 4 | 23.0 | 3.7 | 78.0 | 78.0 | 75.0 | 75.0 |
| 100 | 20.0 | 19.0 | 72.4 | 54.0 | 69.4 | 52.3 |
| 250 | 17.3 | 31.0 | 66.4 | 46.0 | 63.4 | 44.3 |
| 600 | 17.3 | 50.1 | 60.7 | 38.4 | 57.7 | 36.7 |
