LC – LC Duplex Fiber Optic Assemblies / Patch Cord
SKU:CS-FP2DOXX-LC-LC-XX

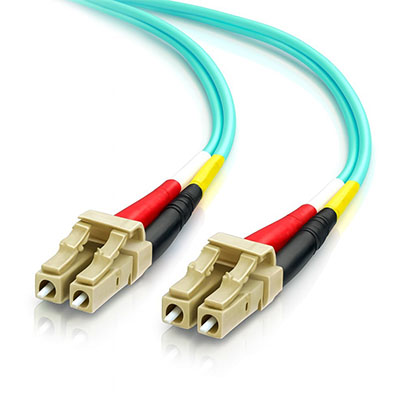

LC to LC Duplex Patch cord, 2F, Zipcord Tight-Buffered Cable, LSZH, 2.0 mm
CONTECH LC-UPC to LC-UPC Duplex Patch cord, 2F, Zipcord Tight-Buffered Cable, LSZH, 2.0 mm in OM3. OM4, OM5 multi-mode and OS2, OS3 single mode variants, both ends are terminated with a High-performance LC connector on both ends, ensuring low insertion loss and stable optical performance.
Applications:
- Data Centers (GE/10G/40G/100G/400G, QSFP28, SFP+) connectivity.
- Enterprise Networks (SAN, backbone, switch-to-switch).
- Fiber-to-the-Home (FTTH) and 5G Networks.
- Telecom & ISP Backbone Connections.
Key Features:
- Connector Type: LC (Lucent Connector) is a small form-factor connector with a 1.25mm ferrule, making it ideal for high-density applications.
- A duplex patch cord consists of two fiber cables (typically single-mode or multimode) with LC connectors on both ends.
- Flexible design options: Choice of materials for strength elements and fiber properties dependent on application requirements.
Standard:
- TIA/EIA-568-C.3,
- IEC 61754-20,
- UL94V-0 for flame resistance.
- Telcordia GR-326 for connector reliability
- IEC 60332-1,2
- RoHS
Physical Specifications:
| Connector Type A/B | A: LC-UPC / B: LC-UPC Duplex |
| Connector Housing /Ferrule | ABS/Ceramic Zirconia |
| Cable Assembly Type | 2 Fibers Tight-Buffered -Zipcord |
| Strength Potation | Aramid yarn (Kevlar®) |
| Outer Jacket Type & OD. | LSZH – 2.0mm |
| Connector Durability | 1000 times |
| Tensile Strength | (Long-term ≥90 N /Short-term: ≥150 N) |
| Min. Bend Radius (Optical Fiber) | 10mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Operating Temperature | -10 to 70°C |
| Storage Temperature | -20 to 70°C |
Optical Characteristics:
| Fiber Type | Multi Mode (MM) | Single Mode (SM) |
| Core Type | OM3/OM4/OM5-50/125 µm | ITU-T G.652.D-G.657.A1 - 9/125µm |
| Wavelength | 850 nm / 1300 nm | 1310 nm / 1550 nm |
| Insertion Loss | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥20dB | ≥50dB-UPC |
Order Information:
| Fiber Type | ClearCurve® OM3 | ClearCurve® OM4 | ClearCurve® OM5 | SMF-28® Ultra
ITU-T G.652.D |
SMF-28® Ultra
ITU-T G.657.A1 |
| Jacket Color | Aqua | Purple/Violet | Lime-Green | Yellow | Yellow |
| Part No. | CS-FP2DOM3-LC-LC-XX | CS-FP2DOM4-LC-LC--XX | CS-FP2DOM5-LC-LC-XX | CS-FP2D52D-LC-LC-XX | CS-FP2D57A-LC-LC-XX |
| Optional Length | 01M, 02M, 03M, 06M 10M, 15M, 20M, 30M | 01M, 02M, 03M, 06M 10M, 15M, 20M, 30M | 01M, 02M, 03M, 06M 10M, 15M, 20M, 30M | 01M, 02M, 03M, 06M 10M, 15M, 20M, 30M | 01M, 02M, 03M, 06M 10M, 15M, 20M, 30M |
