ATBOTSC-04F Fiber Access Terminal BOX (ATB)
SKU:CS-FATSBTSC-XXX
CS-FATSBTSC-04F Fiber Access Terminal BOX (ATB

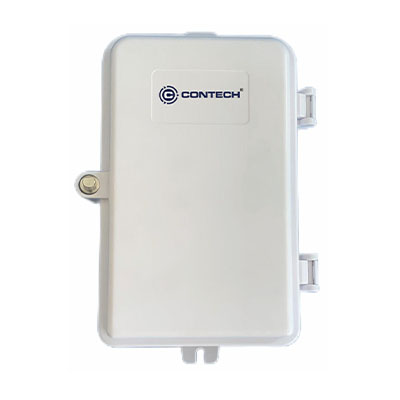

CONTECH CS-FATSBTSC-04F Fiber Access Terminal Box (ATB) is a compact indoor optical distribution unit designed to connect up to 4 fibers, typically used in FTTH (Fiber-to-the-Home) projects for subscriber access. It provides splicing, termination, and protection functions, making it ideal for wall-mounted installations in residential or office environments.
Applications:
- FTTH access network.
- Telecommunication Networks.
- CATV Networks.
- Data communications Networks.
- Local Area Networks.
Key Features:
- Can accommodate 4 SC Simplex / LC Duplex Adaptor.
- Material: PC/ABS Alloy or Fire-Retardant ABS.
- Wall-mounted, Pole-mounted, or Aerial installation..
- Designed for indoor or outdoor installations with varying protection levels.
- Turn-over structure and layout are reasonable with the splicing zone below and distribution zone above.
- This fiber distribution box allows for fusion splicing, winding, storage, and distribution of optical fibers.
- Clear cable routes to prevent mis-operations.
Standard:
- IP65 Rating: Standard for outdoor cabinets
- RoHS
Physical Specifications:
| Material of housing: | High-strength PC+ABS |
| Material of internal components: | High-strength ABS |
| Material of metal accessory: | High-quality stainless steel |
| External dimension(HxWxD): | 210mm x 140mm x 40mm |
| Color: | Gray, black, white |
| Number of distribution cable ports: | 1 Ports /Max 10mm |
| Number of drop cable ports: | 4 Port / 2*3mm |
| IP grade: | IP-65 |
| Splicing capacity(Max): | 1 Tray x 8 F Splice =08F Splice |
| Max Ports of splitter: | 1x4, PLC splitter |
| Operating Temperature: | -20°C to +50°C |
| Storage Temperature: | -25°C to +55°C |
Order Information:
| Product: | Fiber Distribution Closure | Fiber Splitter Box Closure |
| Part No. | CS-FATSBTSC-04F | CS-FATSBTSC-1x04PLC |
