SC – SC Simplex Fiber Optic Assemblies / Patch Cord
SKU:CS-FP3S57A-SC-APC-SC-APC-XX
SC to SC Simplex Patch cord, Tight-Buffered Cable, LSZH, 3.0 mm
CONTECH SC-APC/UPC to SC-APC/UPC Simplex Patch cord, 1F, Tight-Buffered Cable, LSZH, 2.0 mm in OS2, OS3 single mode variants, both ends are terminated with a High-performance SC connector on both ends, ensuring low insertion loss and stable optical performance.
Applications:
- Telecommunications (FTTH, GPON)
- CATV & Broadcasting
- Medical & Military (where low loss is critical)
Key Features:

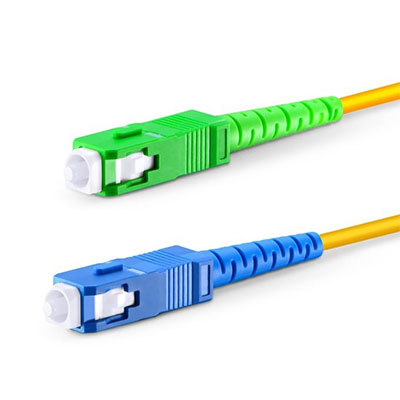

- Connector Type: SC (Subscriber Connector) – a push-pull, snap-in connector with a 2.5mm ferrule.
- UPC (Ultra Physical Contact): Blue connector, polished for low back reflection (~-50dB).
- APC (Angled Physical Contact): Green connector, 8° angled polish for even lower back reflection (~-60dB), ideal for high-speed networks (FTTH, GPON).
- Flexible design options: Choice of materials for strength elements and fiber properties dependent on application requirements.
Standard:
- TIA/EIA-568-C.3,
- IEC 61754-20,
- UL94V-0 for flame resistance.
- Telcordia GR-326 for connector reliability
- IEC 60332-1,2
- RoHS
Physical Specifications:
| Connector Type A/B | A: SC-UPC/APC / B: SC-UPC/APC Simplex |
| Connector Housing /Ferrule | ABS/Ceramic Zirconia |
| Cable Assembly Type | 1 Fibers Tight-Buffered |
| Strength Potation | Aramid yarn (Kevlar®) |
| Outer Jacket Type & OD. | LSZH – 3.0mm |
| Connector Durability | 1000 times |
| Tensile Strength | (Long-term ≥60 N /Short-term: ≥100 N) |
| Min. Bend Radius (Optical Fiber) | 10mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Operating Temperature | -10 to 70°C (14 to 158℉) |
| Storage Temperature | -20 to 70°C (-4 to 158℉) |
Optical Characteristics:
| Fiber Type | Single Mode (SM) |
| Core Type | ITU-T G.652.D-G.657.A1 - 9/125µm |
| Wavelength | 1310 nm / 1550 nm |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB-UPC |
Order Information:
| Fiber Type | SMF-28® Ultra
ITU-T G.652.D |
SMF-28® Ultra
ITU-T G.657.A1 |
SMF-28® Ultra
ITU-T G.657.A1 |
SMF-28® Ultra
ITU-T G.657.A1 |
SMF-28® Ultra
ITU-T G.657.A1 |
| Jacket Color | Yellow | Yellow | Yellow | Yellow | Yellow |
| Part No. | CS-FP3S52D-SC-SC-XX | CS-FP3S57A-SC-UPC-SC-UPC-XX | CS-FP3S57A-SC-APC-SC-APC-XX | CS-FP3S57A-SC-APC-SC-UPC-XX | CS-FP2D57A-SC-SC-XX |
| Optional Length | 01M, 02M, 03M, 06M 10M, 15M, 20M, 30M | 01M, 02M, 03M, 06M 10M, 15M, 20M, 30M | 01M, 02M, 03M, 06M 10M, 15M, 20M, 30M | 01M, 02M, 03M, 06M
10M, 15M, 20M, 30M |
01M, 02M, 03M, 06M 10M, 15M, 20M, 30M |
