Product Description

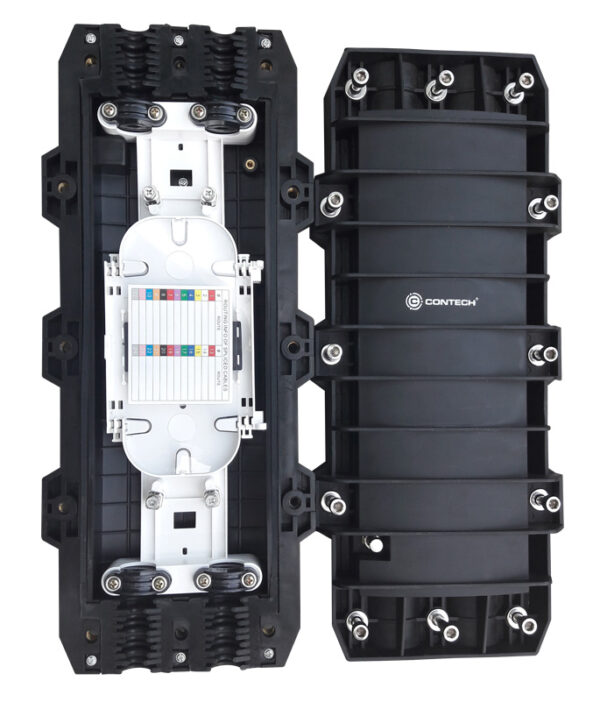

Fiber Optic In-Line (CS-FCILHTSC-48C) Enclosures are well suited for splicing cables in a number of applications including long haul cable jointing, distribution, and drop offs. They are hermetically sealed and ideal for use in all environments including Outdoor/Indoor Wall mount, manholes and aerial applications.
Feature:
- Used for all type of Outdoor/Indoor fiber optic cables.
- Sheath retention & central strength member fasten system included.
- Ribbed closure construction and light weight plastic provides strength and resistance to chemical and U.V attack.
- Fiber Splice Trays can be used for Duct and Trays installations.
- Suitable for limited space applications including hand-holes.
- Protection class: IP68.
- Meets ROHS standards.
Dimension & Capacity:
| L x H x W | 323 mm x 202 mm x 86 mm |
| Tray splice capacity (max.): | 48 fibers & 8 Port Simplex Sc or LC |
| Spice Tray Model: | |
| 4 x T037 | |
| Port Capacity: | 2x round: cable φ20 mm max. |
| 2x round: cable φ16 mm max2x round: cable φ13 mm max |
